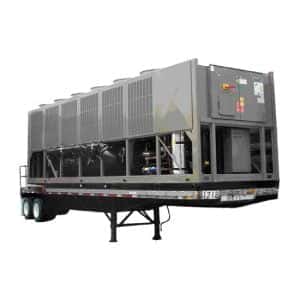

Mobile Air Portable Air-Cooled Screw Chiller self-contained rental packages specifically engineered to provide temporary chilled fluid for commercial and industrial air conditioning and process cooling applications requiring flexibility. Package includes integrally located pump matched specifically to range of operation, piping (with pump bypass), triple-duty valves, chilled fluid fittings and in-line water strainers. The chiller package is permanently mounted on an air ride trailer. These features allow for quick delivery and minimal installation time.
SP NF Disconnect w/system
Sys Circuit Breakers Process Brine Option Capable of 25o F LCWT Louvered Condenser Enclosures
Differential Pressure Gauge w/flow safety interlock Low Sound Fans
PACKAGE FEATURES
Unit Mounted Skid 45’ Air-Ride Flatbed Trailer (Optional)
40 HP Integral Pump Package (Standalone/Booster)
Pump Bypass Option 6” Strainer – w/Pump & Bypass Option
6” Triple-Duty Valve – w/Pump & Bypass Option
Aluminum Ladder for Safe Access
120V-15A Convenience Outlet
120V Extension Cord Shore Power Option
| Manufacturer | York |
| Model | YCAV307 |
| Type | Air Cooled |
| Tons | 307 |
| BTUs | 3684000 |
| Flow Rate | 727 GPM |
| Fluid Connections | 6″grooved |
| Operating Range | 0-125°F |
| Chilled Water Setpoints | 25-60°F |
| Refrigerant Circuits | 3 |
| Compressor Type | Series 16 Cam Type |
| Power Volts | ph | Hz |
460V | 3 Ph | 60 Hz |
| FLA | 538 Amps |
| Circuit size | 579 Amps |
| Length | 45′ |
| Width | 8’6″ |
| Height | 12’10” |
| Shipping Weight | 41500 lbs |
| Operating Weight | |
| Mounted | Trailer |
